Name: Steel Plate Shot Blasting Machine
Brand: Roster Surface Solution Co., Ltd.

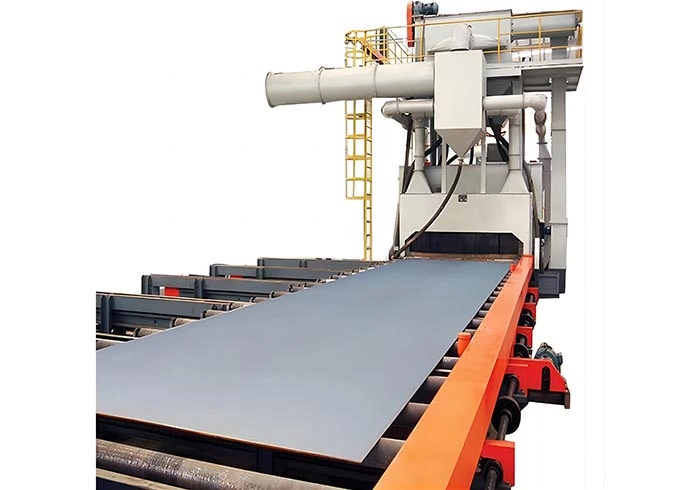

Steel Plate Shot Blasting Machine

Features of Steel Plate Shot Blasting Machine

Specialized shot blasting machine for steel applications, designed for cleaning and descaling steel plates and suitable for aerospace surface treatment, surface treatment in construction, and marine surface preparation.
Shot blasting equipment with adjustable blast intensity for various plate thicknesses, allowing the steel shot blasting machine to provide controlled and consistent surface treatment across different steel specifications.
Efficient abrasive recycling systems.

Benefits of Steel Plate Shot Blasting Machine

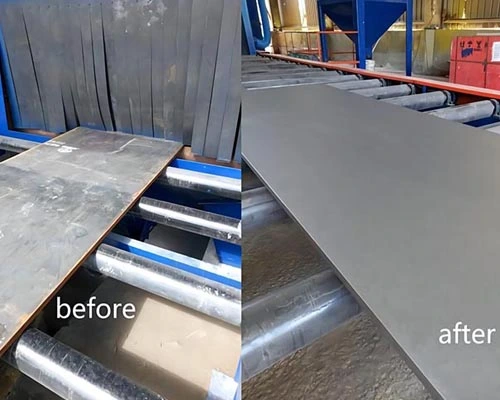

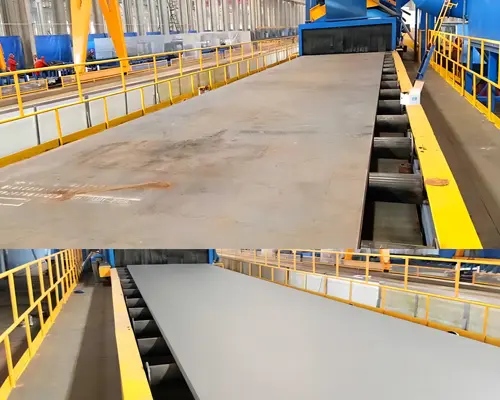

Steel shot for shot blasting improves adhesion for coatings and paint. Selecting the appropriate steel shot for shot blasting machine operation also helps achieve the required surface cleanliness and profile.
Cost-effective operation with media recycling.
Steel plate shot blasting machine for sale enhances steel plate quality and performance. Roster's steel plate shot blasting equipment can be configured according to plate width, thickness, conveying speed, and required cleaning capacity.

For custom automatic shot blasting machine with high quality and wide applications, contact Rosterblast for a suitable solution and steel plate shot blasting machine price based on your specific processing requirements.

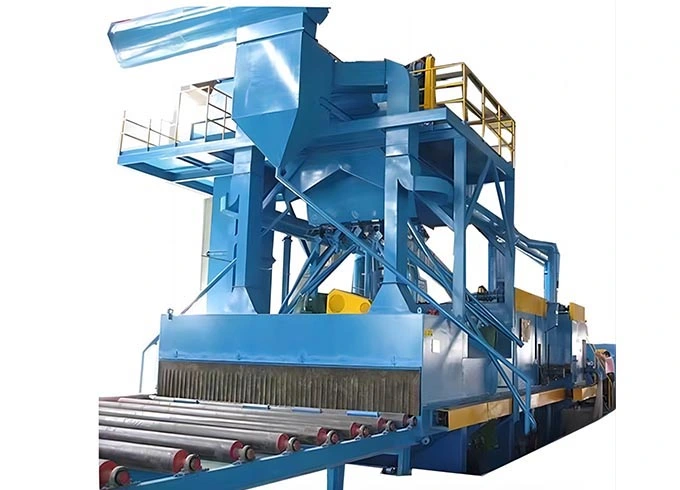

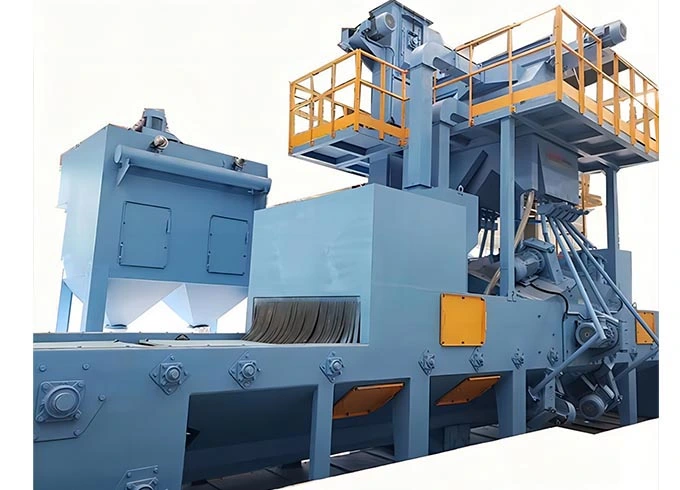

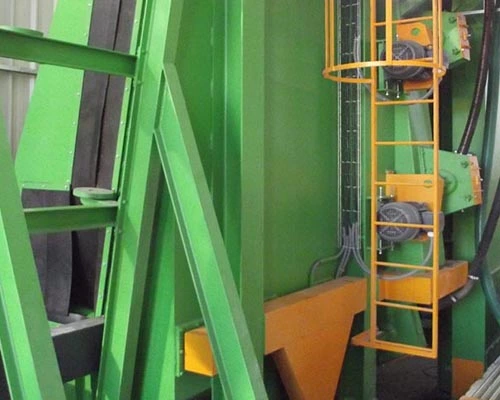

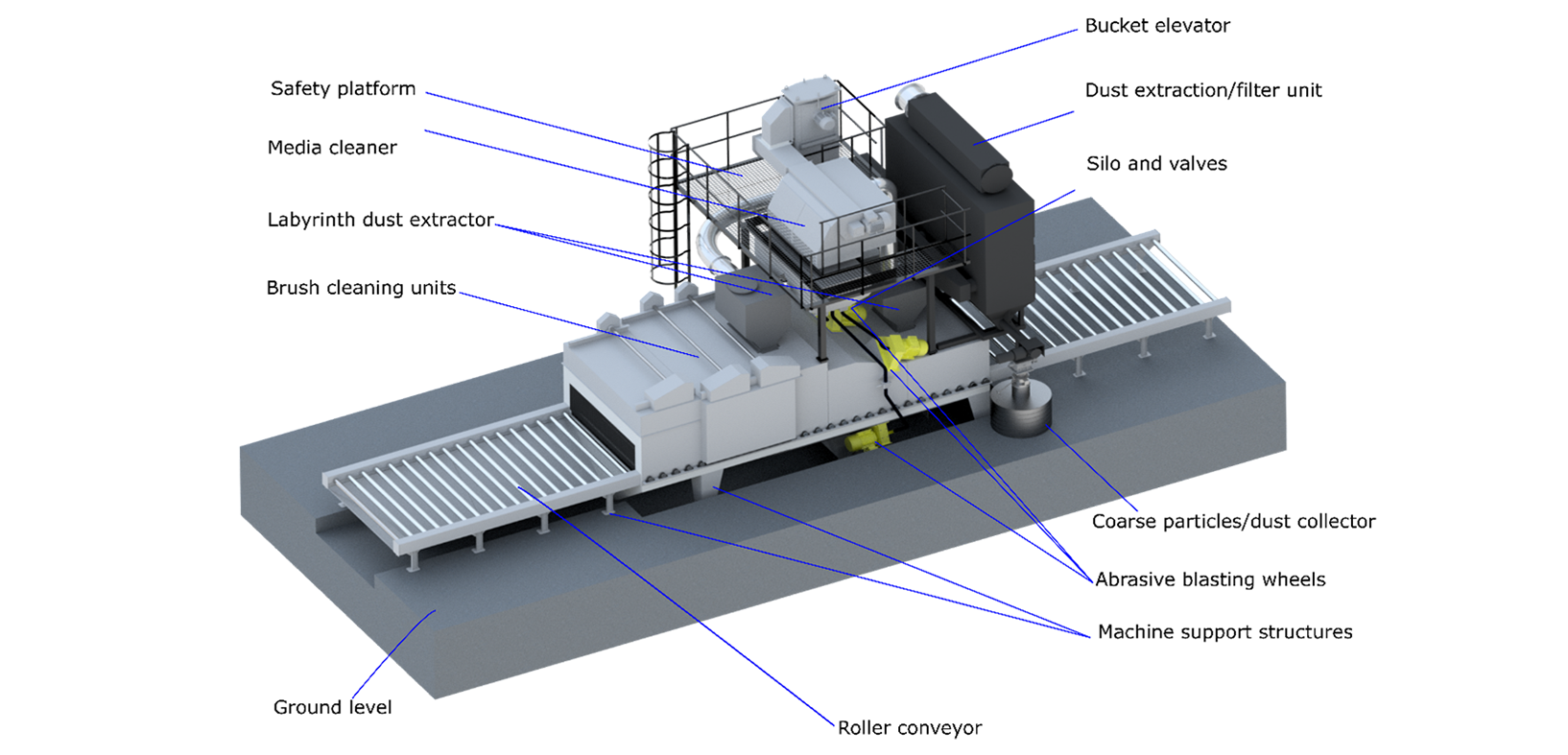

Details of Steel Plate Shot Blasting Machine

Specifications of Steel Plate Shot Blasting Machine

Type	Q698	Q6912	Q6915	Q6920	Q6925	Q6930	Q6940
The effective cleaning width(mm)	800	1200	1500	2000	2500	3000	4000
The room feed-in size(mm)	1000*400	1400*400	1700*400	2200*400	2700*800	3200*800	4200*400
The length of cleaning workpiece(mm)	1200-12000	1200-1600	1200-12000	1200-12000	3000-12000	2400-12000	4500-18000
The speed of wheel conveyer(m/min)	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4	0.5-4
The thicksness of cleaning steelsheet(mm)	3-60	3-60	1.5-60	3-60	3-60	3-110	4.5-100
The section steel specification(mm)	800*300	1000*300	1500*300	2000*300	2500*700	3000*700	4000*300
The quantity of shot blasting(kg/min)	4*180	4*250	4*250	6*250	6*250	6*360	8*360
The first enclosed quantity(kg)	4000	4000	4000	4500	4500	8000	11000
Roll brush adjusting height(mm)	200	200	350	450	600	850	900
Airness capacity(m³/h)	22000	17560	19000	19500	27758	28050	38000
Exterior size(mm)	2501445009015	1218042507095	1520053706797	3065068509095	3120080787500	4404263857758	45000783011117
Total power(except for dust cleaning)(kw)	90	78.3	113.5	156.6	204.8	224.55	293.6
